GV120 GCr15 One Way 42KG Freewheel Backstop Clutch

Brand Name : SUMA

Model Number : GV120

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 1

Price : USD2000-USD500 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 1000PCS Per Month

Delivery Time : 7-10 Days

Packaging Details : Carton Box

Product Name : Backstop Clutch GV120

Material : GCr15 Bearing Steel

Size : 120*300*110mm

Rotation Speed : 130RPM

Unit Weight : 42Kg

Warranty : 1 Year

Torque Capacity : 11100Nm

OEM : Accept

Contact Now

GV120 GCr15 One Way 42KG Freewheel Backstop Bearing

Technical Datas

Item GV120
Material GCr15
Bore size 120 mm
Outer dia. 300 mm
Thickness 110 mm
Torque 11100 Nm
Drag torque 6 Ncm
Weight 42 kg
Max. speed 130 rpm
Port Shanghai;Ningbo
Delivery time 10-20 days

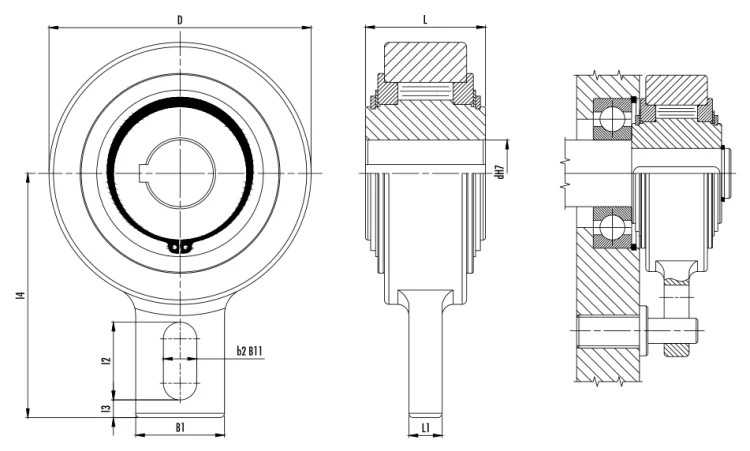

Dimensions and Capacities

GV120 GCr15 One Way 42KG Freewheel Backstop Clutch

Model dH7 D L B1 L1 b2 l2 l3 l4

Weight

(kg)

Max.speed

(rpm)

Torque

(Nm)

Drag Torque

(Ncm)
GV20 20 83 35 40 12 15 35 5 90 1.3 450 275 0.2
GV25 25 83 35 40 12 15 35 5 90 1.3 450 275 0.2
GV30 30 118 54 40 15 15 35 8 110 3.5 320 1250 1.2
GV35 35 118 54 40 15 15 35 8 110 3.4 320 1250 1.2
GV40 40 118 54 40 15 15 35 8 140 3.3 320 2180 1.2
GV45 45 155 54 80 15 18 35 10 140 5.8 300 2180 2.2
GV50 50 155 54 80 15 18 35 10 140 5.7 300 2180 2.2
GV55 55 155 54 80 15 18 35 10 140 5.6 300 2180 2.2
GV60 60 155 54 80 15 18 35 10 140 5.5 300 2180 2.2
GV70 70 155 54 80 15 18 35 10 140 5.3 300 2180 2.2
GV80 80 190 64 80 20 20 40 10 155 8.7 200 2930 3.5
GV90* 90 260 90 120 25 30 50 20 220 24.5 150 7250 3.5
GV100* 100 260 90 120 25 30 50 20 220 23.5 150 7250 3.5
GV110* 110 260 90 120 25 30 50 20 220 22.5 150 7250 3.5
GV120* 120 300 110 120 30 30 50 20 240 42 130 11100 6


Pictures

GV120 GCr15 One Way 42KG Freewheel Backstop Clutch

GV120 GCr15 One Way 42KG Freewheel Backstop Clutch
